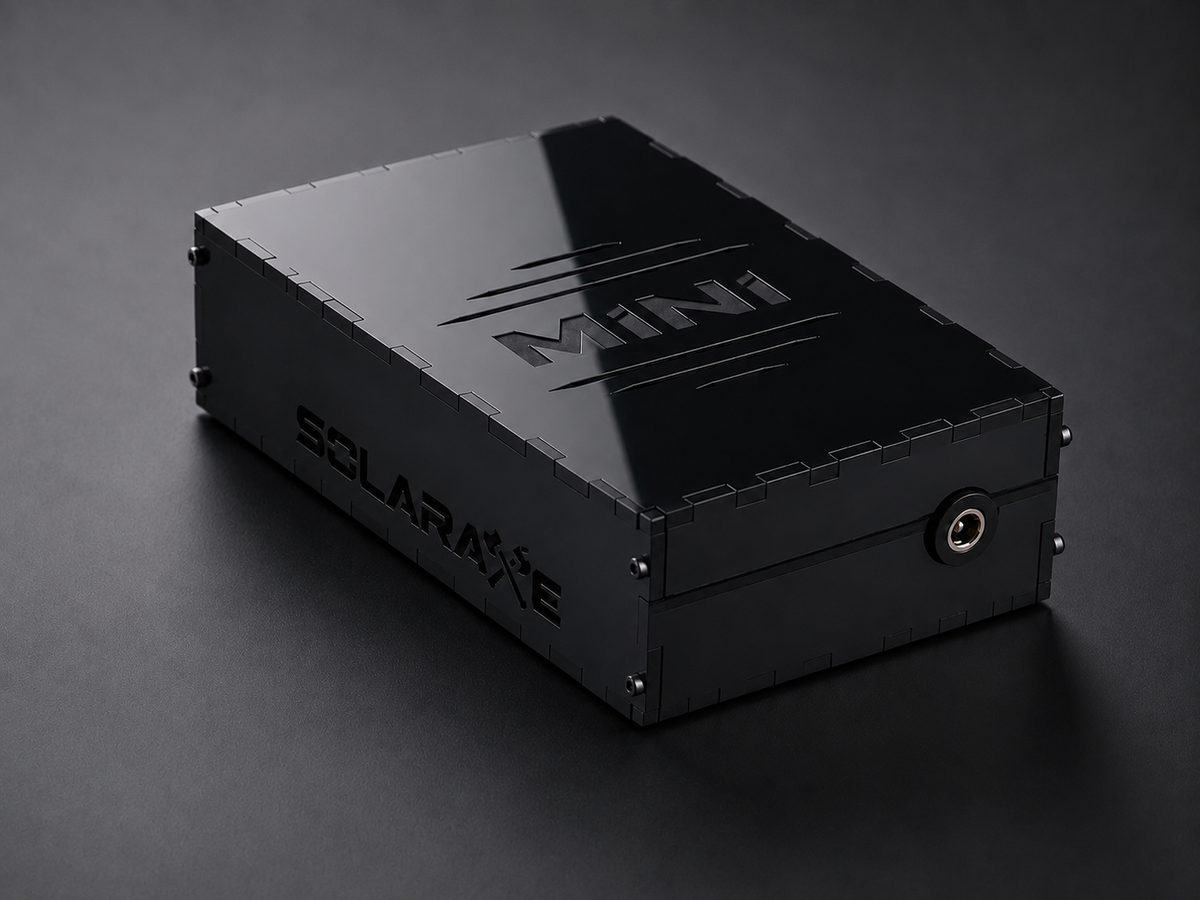

The Mini Core
Turn a solar panel into a direct power source for your 5V miner.
The SolarAxe Mini is a compact DC power system designed for miners like the Bitaxe Gamma 601 and 602. It takes power from a compatible solar panel or 12V DC source and regulates it down to the stable 5.0–5.4V your miner needs.
No inverter. No oversized solar generator. No unnecessary DC → AC → DC conversion.
Just:

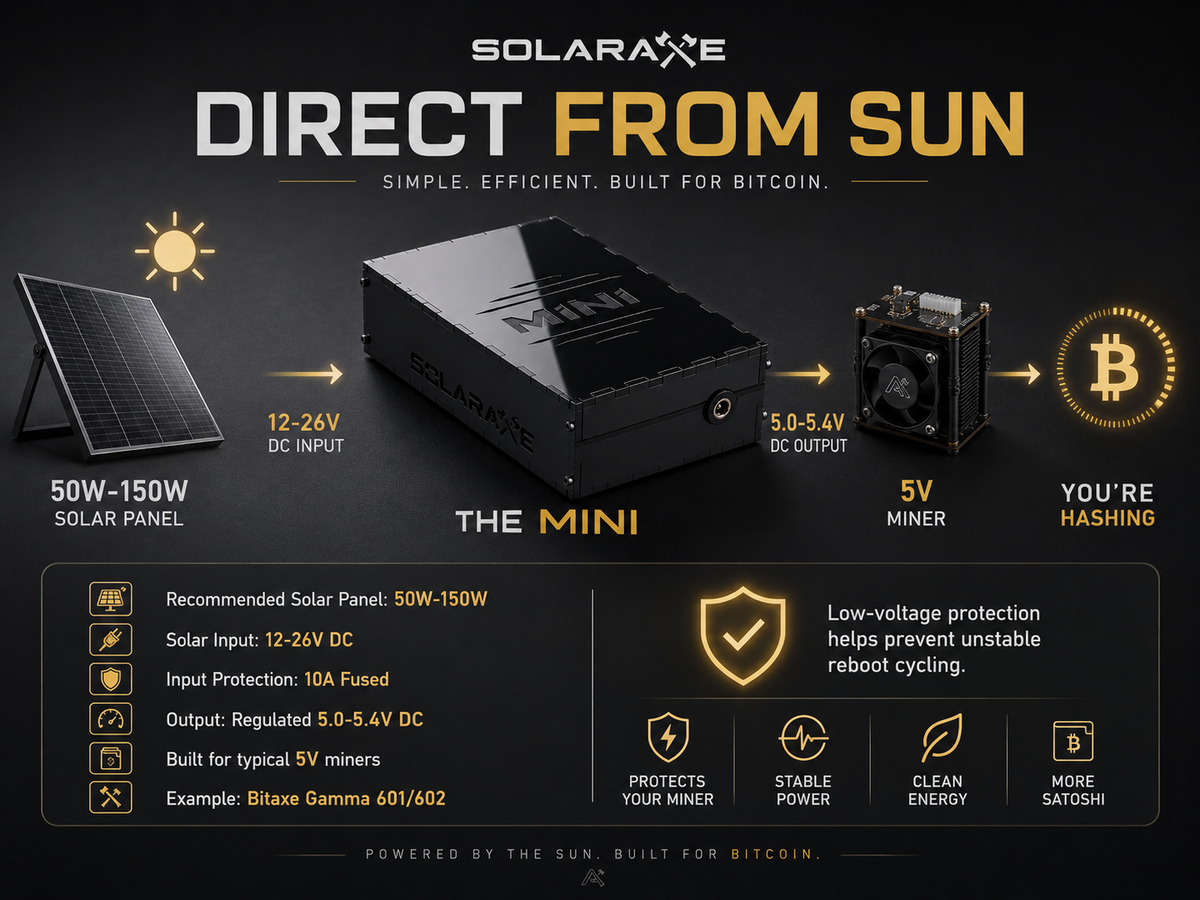

Solar Panel → Mini → Miner → Hashing
Direct Solar Mining
Connect the Mini to a compatible 50W–150W solar panel and power your miner directly from the sun.
Recommended solar input:
- 50W–150W solar panel
- 12–26V DC input
- 10A fused input protection
- Regulated 5.0–5.4V DC output
The Mini also includes low-voltage protection designed to disconnect the miner when available solar power drops too low, helping prevent unstable reboot cycling during clouds, mornings, evenings, and changing solar conditions.

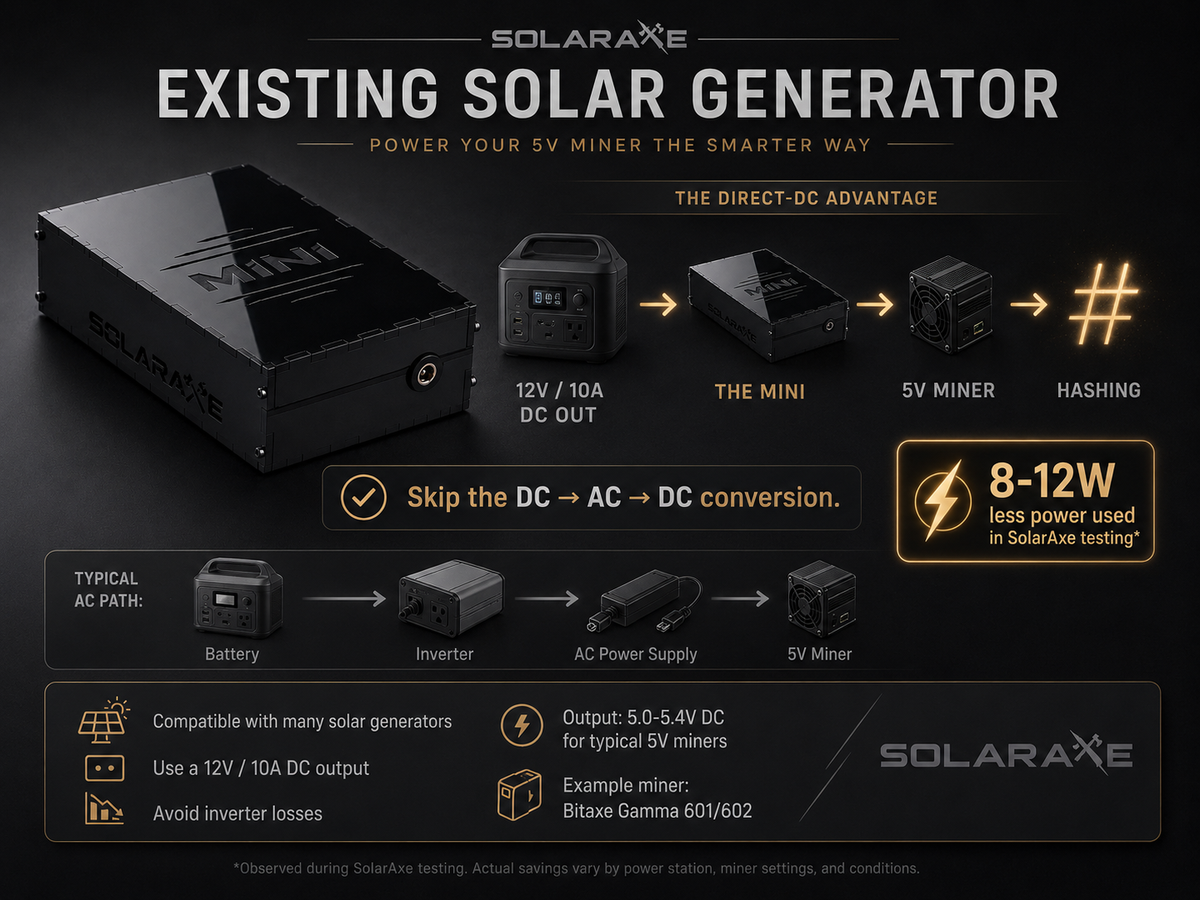

Already Have a Solar Generator?
The Mini can also be used with many solar generators that provide a compatible 12V / 10A DC output.
Instead of using:
Battery → Inverter → AC Power Supply → Miner
you can use:
12V DC → Mini → Miner
This bypasses the inverter and the miner’s AC power supply entirely.
In SolarAxe testing, this direct-DC setup reduced total system power usage by approximately 8–12 watts compared with powering the same miner from a solar generator’s AC outlet.*
For a miner that may only consume around 20 watts itself, that efficiency gain can make a significant difference in solar runtime.
Built for 5V Miners
The Mini is designed for typical 5V Bitcoin miners, including:
Bitaxe Gamma 601
Bitaxe Gamma 602
and other compatible 5V miners within the Mini’s output capabilities.
Small Box. Simple Job.
The Mini does one thing: get DC power to your miner efficiently.
Whether you are building a dedicated direct-solar mining setup or improving the efficiency of a solar generator you already own, the Mini eliminates unnecessary conversions and gives you a simple plug-and-play path to off-grid hashing.
Specifications

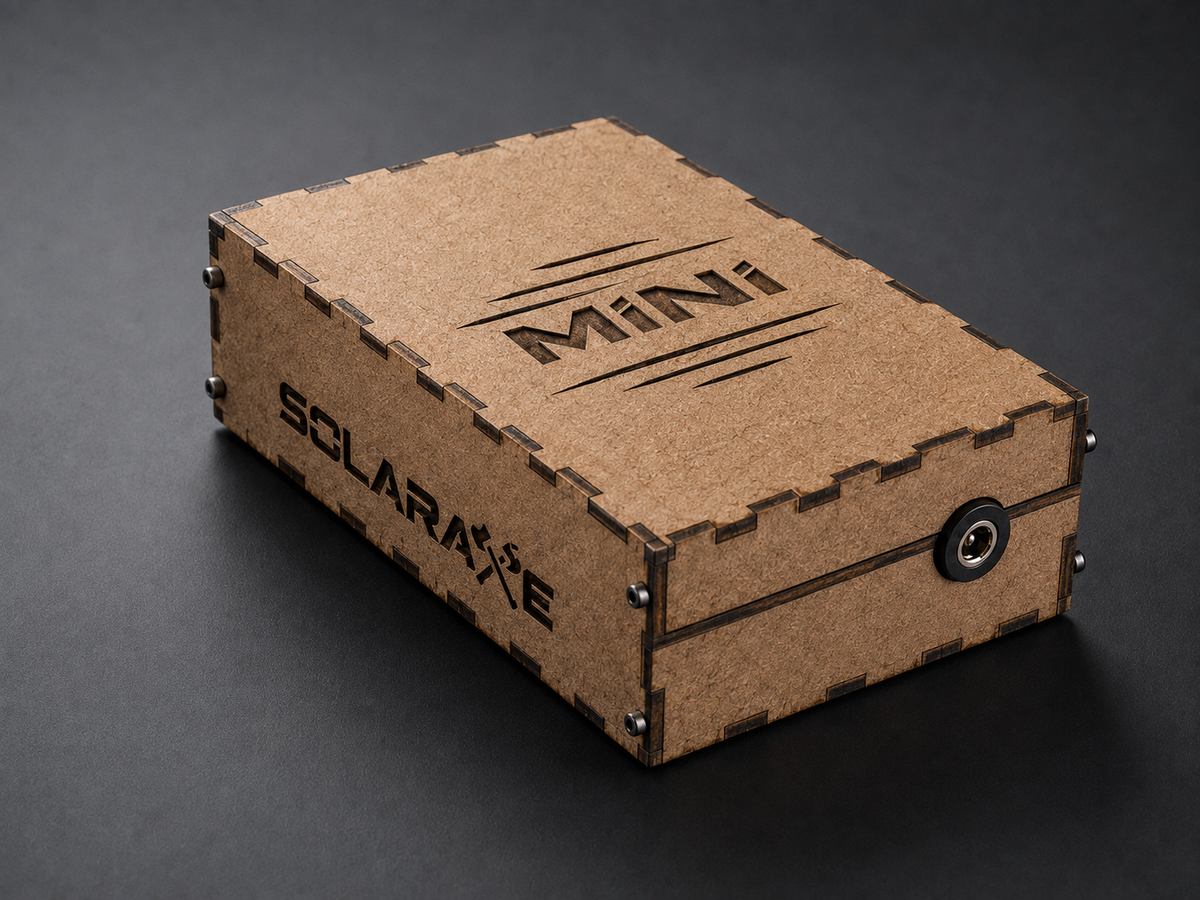

SpecificationSolarAxe MiniRecommended Solar Panel50W–150WSolar Input Voltage12–26V DCInput Protection10A FuseOutput Voltage5.0–5.4V DCMiner TypeCompatible 5V minersExample MinersBitaxe Gamma 601 / 602Solar Generator UseCompatible 12V DC outputEnclosure OptionsBlack Acrylic or Hardboard
*8–12W reduction observed during SolarAxe testing. Actual savings vary by solar generator, inverter efficiency, miner settings, wiring, and operating conditions.
Power your Bitaxe directly from solar — or make your existing solar generator more efficient.
